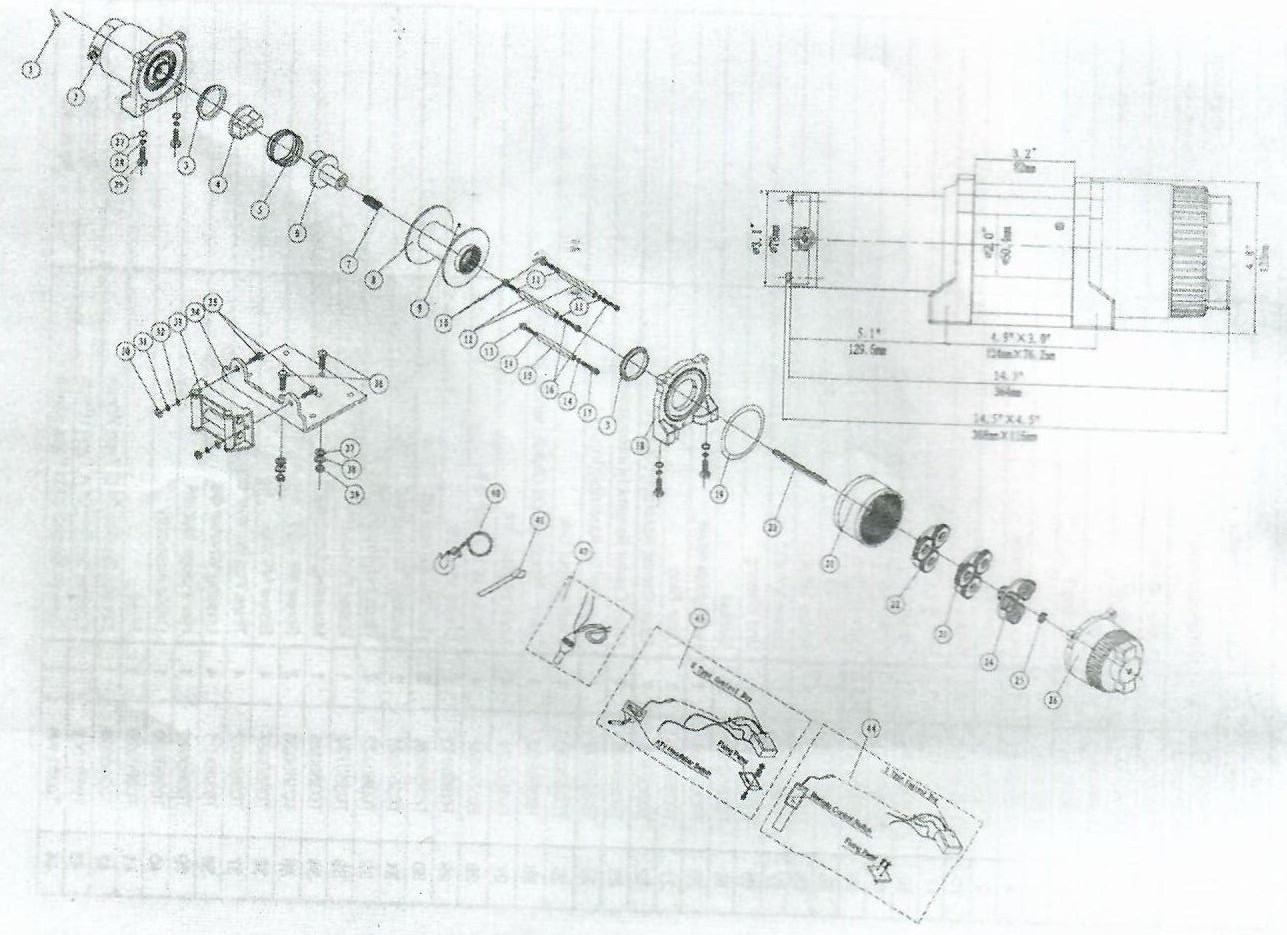

Кроме представленных на рисунке деталей можно также приобрести боковину крепления мотора лебедки и щеточный узел.
| № п/п | Заводской номер | Description | Кол-во | Русское название | Артикул |
| 1 | T0350001 | Terminal Protector | 2 | Изоляционные колпачки | Изоляторы |
| 2 | T0350100-D | Motor Assembly | 1 | ||
| Щеточный узел | BHAT3500 | ||||
| Боковина мотора | MotorBracketEWT3500ASR | ||||
| 3 | T0350002 | Bushing-Drum | 2 | ||
| 4 | T0350003 | Coupling I | 1 | ||
| 5 | T0350004 | Spring | 1 | ||
| 6 | T0350005 | Coupling II | 1 | ||
| 7 | T0350006 | Spring | 1 | ||
| 8 | T0350200 | Drum Assembly | 1 | ||
| 9 | T0350007 | Screw M6 x 8 | 1 | ||
| 10 | T0350008 | Screw M6 x25 | 2 | ||
| 11 | T0350009 | Locking Washer Ф6 | 4 | ||
| 12 | T0350010 | Tie Bar | 2 | ||
| 13 | T0350011 | Screw M4x15 | 1 | ||
| 14 | T0350012 | Locking Washer Ф4 | 2 | ||
| 15 | T0350013 | Stand Bar | 1 | ||
| 16 | T0350014 | Screw M6 x30 | 2 | ||
| 17 | T0350015 | Screw M4 x35 | 1 | ||
| 18 | T0350016 | End Bearing | 1 | ||
| 19 | T0350017 | Gasket | 1 | ||
| 20 | T0350018 | Hexagonal Shaft | 1 | ||
| 21 | T0350019 | Gear-Ring | 1 | ||
| 22 | T0350300 | Gear Carrier Assembly(Output) | 1 | ||
| 23 | T0350400 | Gear Carrier Assembly (Intermediate) | 1 | ||
| 24 | T0350500 | Gear Carrier Assembly(lnput) | 1 | ||
| 25 | T0350020 | Gear- Input Sun | 1 | ||
| 26 | T0350600 | Gear-Housing And Clutch Handle Assembly | 1 | ||
| 27 | T0350021 | Lock Washer Ф8 | 4 | ||
| 28 | T0350022 | Thick Flat Washer Ф8 | 4 | ||
| 29 | T0350023 | Screw M8 x 25 | 4 | ||
| 30 | T0350024 | Hex Flange Nut M8 | 2 | ||
| 31 | T0350021 | Locking Washer Ф8 | 2 | ||
| 32 | T0350022 | Thick Flat Washer Ф8 | 2 | ||
| 33 | T0350700 | Roller Fairlead | 1 | Роликовые направляющие | 124 мм |
| Алюминиевый клюз под синтетический трос | 124 мм | ||||
| 34 | T0350025 | Mounting Channel | 1 | ||
| 35 | T0350026 | Screw M8x 20 | 2 | ||
| 36 | T0350027 | Screw M8 x35 | 4 | ||
| 37 | T0350022 | Thick Flat Washer Ф8 | 4 | ||
| 38 | T0350021 | Locking Washer Ф8 | 4 | ||
| 39 | T0350028 | Hex Flange Nut M8 | 4 | ||
| 40 | T0250800 | Cable Assembly | 1 | Стальной трос | Ø 5,5 мм |
| Синтетический трос | Ø 5,5 мм | ||||
| Крюк | STO ACC-HK3 | ||||
| 41 | T0350029 | Strap | 1 | Лента для крюка | Ленты |
| 42 | T0350900 | Control Section Of D Type Winch | 1 | Соленоид для ATV-лебедок |
W1508 |
| 43 | T0351000 | Control Section Of A Type Winch | 1 | ||
| 44 | T0351100 | Control Section Of U Type Winch | 1 |
