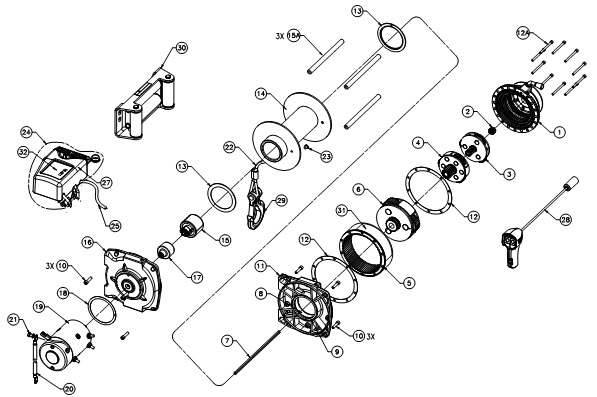

Для подбора запчасти для лебедки WARN 16.5Ti найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item | Qty | Part No | Description |
| 1 | 1 | 68771 | GEAR HOUSING |
| 2 | 1 | 32437 | SUN GEAR, 12 TOOTH |
| 3 | 1 | 61739 | CARRIER ASSEMBLY, STAGE 1 |
| 4 | 1 | 61738 | CARRIER ASSEMBLY, STAGE 2 |
| 5 | 1 | 68769 | RING GEAR, OUTPUT STAGE |
| 6 | 1 | 65933 | CARRIER ASSEMBLY, STAGE 3 |
| 7 | 1 | 67970 | SHAFT,DRIVE,12.023 X .312 |
| 8 | 2 | 16336 | DRUM BUSHING NYLON |
| 9 | 2 | 17150 | S/P RADIAL OIL SEAL |
| 10 | 6 | 60451 | BOLT,SHCS, 5/16-18 x 1-1/4F THREAD CUT |
| 11 | 1 | 68770 | DRUM SUPPORT, GEAR TRAIN END(Includes item: 8,and 9) |
| 12 | 2 | 14964 | GASKET |
| 12A | 10 | 15603 | CAPSCREWS, 1/4-20X3” |
| 13 | 2 | 13826 | THRUST WASHER, NYLON |
| 14 | 1 | 15466 | DRUM ASSEMBLY |
| 15 | 1 | 32456 | BRAKE ASSEMBLY |
| 15A | 3 | 32408 | TIE ROD |
| 16 | 1 | 68772 | DRUM SUPPORT, MOTOR END |
| 17 | 1 | 60730 | DRIVER, BRAKE WIDE TANGS |
| 18 | 1 | 63533 | GASKET,MOTOR |
| 19 | 1 | 68773 | MOTOR, 12V, BIC, W/TPD |
| 20 | 1 | 15901 | CABLE ASSEMBLY, 72” BLACK |
| 21 | 1 | 26744 | CAPSCREW, M8x1.25 X 12mm |
| 22 | 1 | 61950 | WIRE ROPE ASSEMBLY, 7/16x90’ |
| 23 | 1 | 16064 | CPSCR BTN HD, 5/16-18x3/8” |
| 24 | 1 | 68774 | S/P, CONTROL PACK,16.5ti |
| 25 | 1 | 33295 | CABLE ASSEMBLY, 72” RED |
| 4 | 28396 | SOLENOID, TERMINAL UPRIGHT (N/S) | |
| 27 | 1 | 68776 | HOUSING, ASSY, CONTROL,16.5ti |
| 28 | 1 | 72566 | REMOTE CONTROL ASSEMBLY, W/LED-FLASHLIGHT |
| 29 | 1 | 28626 | HOOK, CLEVIS, 1/2” SAFETY |
| 30 | 1 | 61956 | ROLLER FAIRLEAD ASSEMBLY |
| 31 | 1 | 68648 | LABEL,16.5ti WARNING |
| 32 | 1 | 68646 | LABEL,MODEL IDENTIFIER,16.5ti |
