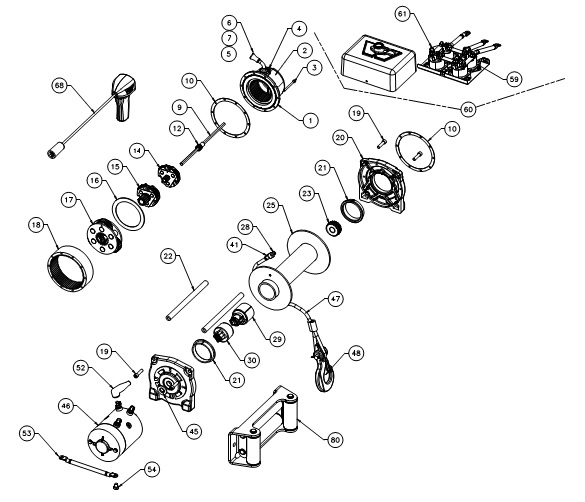

Для подбора запчасти для лебедки WARN M8000(12В/24В) найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item | Qty | Part No | Description |
|
1
|
1 | 37131 | END HOUSING, ASSEMBLY(INCLUDES #4,5,6&7) |
| 2 | 1 | 38016 | DECAL |
|
3
|
10 |
SOCKET HEAD CAPSCREW, 10-24 x 2 1/2
|
|
|
4
|
1 | DETENT SCREW | |
|
5
|
1 | O-RING SEAL | |
| 6 | 1 | 68611 | CLUTCH LEVER(Includes # 4, 5, 7 & 10) |
| 7 | 1 | RETAINER, SEAL | |
| 9 | 1 | 27372 | HEX SHAFT, 10.10 |
|
10
|
2 |
GASKET
|
|
|
12
|
1 |
SUN GEAR
|
|
|
14
|
1 |
CARRIER ASSEMBLY, STAGE 1
|
|
| 15 | 1 |
CARRIER ASSEMBLY, STAGE 2
|
|
|
16
|
1 |
THRUST BEARING
|
|
| 17 | 1 |
CARRIER ASSEMBLY, STAGE 3
|
|
|
18
|
1 |
RING GEAR
|
|
| 19 | 4 | 60451 | BOLT,SHCS,THREAD CUTTING, 5/16-18x1-1/4 |
| 20 | 1 |
DRUM SUPPORT, GEAR TRAIN
|
|
|
20A
|
1 |
DRUM SUPPORT, MOTOR
|
|
|
21
|
2 |
DRUM BUSHING
|
|
|
22
|
2 | 32408 | TIE ROD |
| 23 | 1 | 14584 |
DRIVE SPLINED W/RETAINING RING
|
| 25 | 1 |
DRUM ASSEMBLY
|
|
|
28
|
1 |
BUTTON HEAD CAPSCREW
|
|
|
29
|
1 |
BRAKE ASSEMBLY
|
|
|
30
|
1 |
MOTOR COUPLER
|
|
|
41
|
1 |
WIRE ROPE TERMINAL KIT
|
|
| 45 | 1 | 15271 | SPACER, MOTOR |
| 46 | 1 |
MOTOR, 4.5 SHORT
|
|
|
47
|
1 |
WIRE ROPE ASSY, 100' W/THIMBLE(Includes Item41)
|
|
|
48
|
1 |
CLEVIS HOOK, 3/8 W/LATCH
|
|
| 52 | 3 |
BOOT, ELECTRICAL TERMINAL;
|
|
| 53 | 1 | 15901 | CABLE ASSY,ELECTRIC, 2GAx72"(BLACK) |
|
54
|
1 |
HEX HEAD CAPSCREW, M8x2.25X12mm
|
|
|
59
|
4 |
SOLENOID, TERMINAL UPRIGHT
|
|
|
60
|
1 |
WINCH CONTROL, 12 VDC
|
|
| 61 | 1 |
CABLE ASSY, ELECTRIC, 2GAX72”
|
|
| 68 | 1 |
REMOTE CONTROL ASSEMBLY
|
|
|
80
|
1 | 5742 |
FAIRLEAD, ROLLER
|
