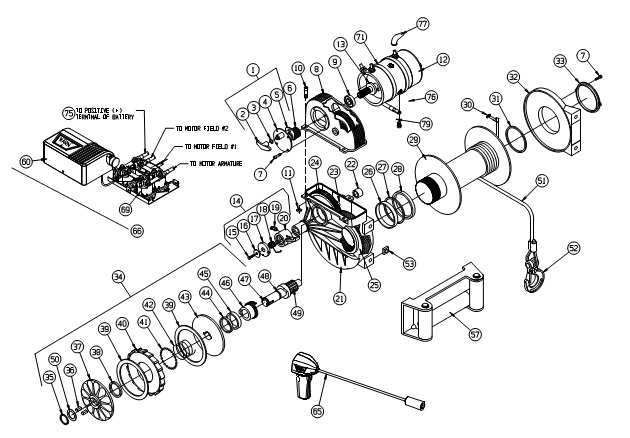

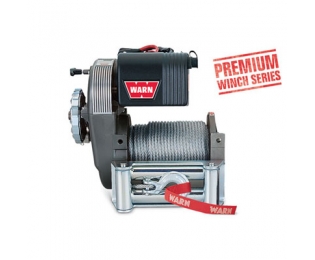

Для подбора запчасти для лебедки WARN M8274-50 CE найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item |
Qty
|
Part No
|
Description
|
| 1 | 1 |
CLUTCH ASSEMBLY(Includes items 2-5)
|
|
| 2 | 1 |
SHIFT KNOB
|
|
| 3 | 1 |
SEAL
|
|
| 4 | 1 |
CLUTCH HOUSING
|
|
| 5 | 1 |
SHIFTER ASSEMBLY
|
|
| 6 | 1 | 15879 |
MOTOR PINION GEAR
|
|
7
|
6 | 8763 |
SCREW, 10-24X3/8”
|
| 8 | 1 |
UPPER HOUSING ASSEMBLY(Includes item 9 and gears)
|
|
| 9 | 1 | 8316 |
ARMATURE, BEARING
|
|
10
|
3 |
CAPSCREW, 5/16-18”
|
|
| 11 | 3 |
SQUARE NUT, 5/16-18
|
|
| 12 | 1 |
MOTOR, 4.5 LONG (includes item 6, 13 & 79)
|
|
| 13 | 1 | 69945 |
SPACER, MOTOR
|
| 14 | 1 |
PAWL, ASSEMBLY(Includes items 15 thru 20)
|
|
| 15 | 1 |
CAPSCREW, 1/4-20X1/2”
|
|
| 16 | 1 |
WASHER
|
|
| 17 | 1 |
PROTECTIVE CAP
|
|
| 18 | 1 |
PAWL SPRING
|
|
| 19 | 1 |
GREASE FITTING
|
|
| 20 | 1 |
PAWL
|
|
|
21
|
1 |
LOWER HOUSING ASSEMBLY(Includes items 22, 26 & 27)
|
|
|
22
|
1 | 8356 |
BEARING
|
| 23 | 1 |
RETAINING RING
|
|
| 24 | 1 |
INTERMEDIATE GEAR
|
|
|
25
|
1 |
MAIN GEAR
|
|
|
SERVICE KIT,LOWER HOUSING(Includes items 26 thru 28 & 31)
|
|||
| 26 | 1 |
BUSHING (IN 8680 KIT)
|
|
| 27 | 1 |
SEAL (IN 8680 KIT)
|
|
| 28 | 1 |
THRUST WASHER (IN 8680 KIT)
|
|
|
29
|
1 |
DRUM
|
|
| 30 | 1 |
WIRE ROPE CLAMP
|
|
| 31 | 1 |
BUSHING (IN 8680 KIT)
|
|
|
32
|
1 |
END SUPPORT, ASSEMBLY(Includes items 31, 33 and 7)
|
|
|
33
|
1 |
END CAP
|
|
| 34 | 1 |
BRAKE ASSEMBLY(Includes items 35 thru 50)
|
|
|
35
|
1 | 35028 | RETAINING RING |
| 36 | 2 |
KEY
|
|
|
SERVICE KIT, BRAKE(Includes items 35, 36, 38, 39,41, 42, 44, 45, 48 and 50)
|
|||
| 37 | 1 | 8703 |
OUTER BRAKE DISC
|
| 38 | 1 |
HUB (IN 8409 KIT)
|
|
|
39
|
2 |
FRICTION MATERIAL
|
|
|
40
|
1 |
RATCHET
|
|
| 41 | 21 |
STEEL BALL(IN 8409 KIT)
|
|
| 42 | 1 |
SPRING(IN 8409 KIT)
|
|
| 43 | 1 |
INNER BRAKE DISC
|
|
| 44 | 1 |
LIP SEAL
|
|
|
45
|
1 |
BUSHING
|
|
|
46
|
1 |
SPLINED CAM
|
|
| 47 | 1 | 7732 |
PINION AND CAM (Includes item 49)
|
| 48 | 1 |
O-RING SEAL
|
|
|
49
|
1 |
CAM
|
|
|
50
|
3 | 37472 |
SPRING, DISC BELLEVILLE
|
| 51 | 1 | 38311 |
WIRE ROPE ASSEMBLY
|
| 52 | 1 | 63979 |
HOOK, 3/8” CLEVIS
|
| 53 | 4 |
SQUARE NUT
|
|
|
57
|
1 |
FAIRLEAD, ROLLER
|
|
|
60
|
1 | 38199 |
CONTROL HOUSING, 12V,W/HARNESS, W/PLUG
|
| 65 | 1 | 72567 |
REMOTE CONTROL
|
|
66
|
1 | 38845 |
SOLENOID PACK, 12V
|
|
69
|
4 | 28396 |
SOLENOID, UPRIGHT TERMINAL
|
|
71
|
2 | 6005 |
CLAMP
|
|
75
|
1 | 33295 |
CABLE, ELECTRIC 2GA. 72” (RED)
|
|
76
|
1 | 15901 |
CABLE, ELECTRIC 2GA. 72” (BLACK)
|
| 77 | 3 | 2090 |
BOOT, ELECTRICAL TERMINAL
|
|
79
|
1 | 26744 |
HEX HEAD CAPSCREW, M8 X 1.25 X 12mm
|
|
80
|
1 | 38307 |
LABEL, KIT, CE M8274
|
