Запчасти для лебедки WARN PowerPlant 9.5

Для подбора запчасти для лебедки WARN PowerPlant 9.5 найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!

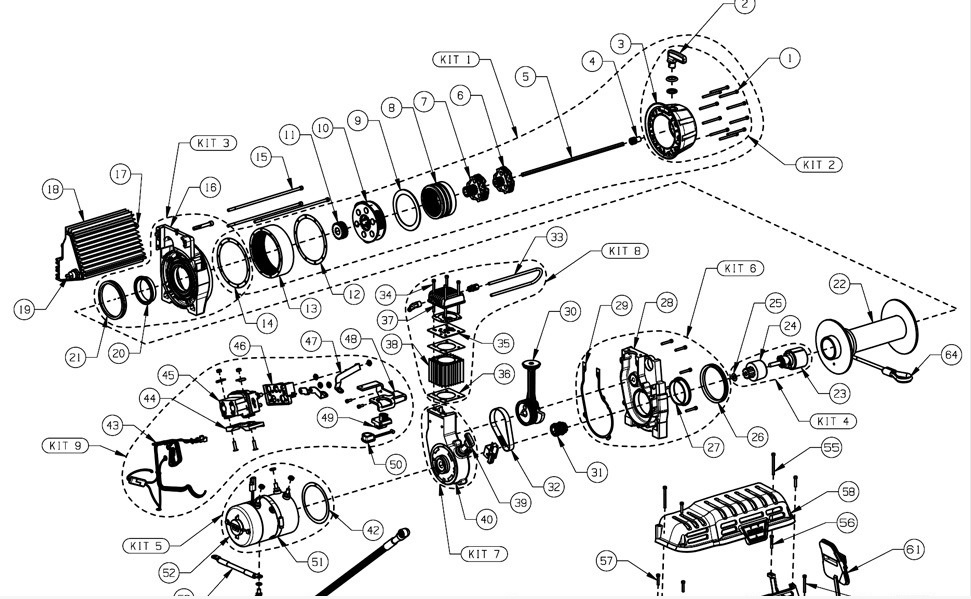

Схема запчастей

Таблица запчастей

Kit No	9,5/HP	Item	Description
1	91828		S/P Geartrain 156:1
		1	SHCS, 10-24x2.25’’
		(2)	S/P End Housing
		4	Sun Gear
		5	Drive Shaft
		6	Carrier Assy, Stage 1
		7	Carrier Assy, Stage 2
		8	Ring Gear, Sliding
		9	Washer, Thrust
		10	Carrier Assy, Stage 3
		11	Drive Spline
		12	Gasket, Housing
		13	Ring Gear
		14	Gasket, Ring Gear
2	91832		S/P End Housing
		1	SHCS, 10-24x2.25’’
		2	Clutch Lever
		3	End Housing
		8	Ring Gear, Sliding
		12	Gasket, Housing
3	91834		S/P Drum Support, Geartrain
		12	Gasket, Housing
		16	Drum Support, Geartrain
		20	Drum Bushing
		21	Drum Seal
4	74305		S/P Brake Assy
		5	Drive Shaft
		23	Brake Assembly
		24	Brake Driver
		25	Thrust Washer
5	74307		S/P Motor
		42	Gasket, Motor
		52	Motor, 12V
6	91836		S/P Drum Support, Motor
		26	Drum Seal
		27	Drum Bushing
		28	Drum Support, Motor
		29	Gasket, Crankcase
7	91835		S/P Crankcase Assy
		29	Gasket, Crankcase
		39	Lever, Mode
		40	Crankcase Assembly
		42	Gasket, Motor
8	75524		S/P Compressor Head Assy
		33	Crossover Tube
		34	SHCS, 10-24 x 3.5’’, MAGNI515
		35	Reed Assembly
		36	Gasket, Compressor
		37	Compressor Head
		38	Compressor Cylinder
9	91818		Contactor Upgrade
		43	Wire Harness
		44	Contactor Mount
		45	Contactor
		46	Separator
		47	Busbars
		48	Receptacle Bracket
		49	Remote Receptacle
		50	Remote Receptacle Dust Cover
		51	Hose Clamp
10	91822		Fastener Upgrade Kit
		1	SHCS, 10-24 x 2.25’’, SS (Geartrain)
		34	SHCS, 10-24 x 3.50’’. MAGNI515 (Comp. Head)
		55	SHCS, 10-24 x 1.75’’. SS (Cover)
		56	SHCS, 10-24 x 1.25’’. SS (Cover)
		57	SHCS, 10-24 x 1.00’’. SS (Cover)
Kit No	12/HP	Item	Description
11	91684		Accessory Upgrade Kit
			Pressure Guage, Dial
			Tire Chuck
			20’ Air Hose
			Quick Disconnect (male)
			Accessory Bag
			Air Intake Tub
			Intake Filter

9.5/HP	Item	Description
13874	4	Sun Gear
34339	6	Carrier Assy, Stage 1
73710	5	Drive Shaft
34342	7	Carrier Assy, Stage 2
13826	9	Washer, Thrust
28432	10	Carrier Assy, Stage 3
28353	8	Ring Gear, Sliding
25308	13	Ring Gear
14584	11	Drive Spline
75521	30	S/P Crank-Piston Assy
80266	32	S/P Compressor Drive Belt
26107	22	Drum
74314	21	S/P Drum Seals
38312	64	S/P Wire Rope, 5/16'' x 125' with Thimble
5742	63	Roller Fairlead
83653	62	S/P PowerPlant Remote
91222	45	Contactor
33295	41	Power Cable
15901	53	Ground Cable
91687	43	Wire Harness
72935	17	Quick Disconnect
72098	18	Intercooler Weldment
91649	19	Pressure Switch
91507	50	Remote Receptacle Dust Cover
91831	58	S/P Top Cover
91829	59	S/P Front Cover 9.5
91824	60	S/P Mode Cover
