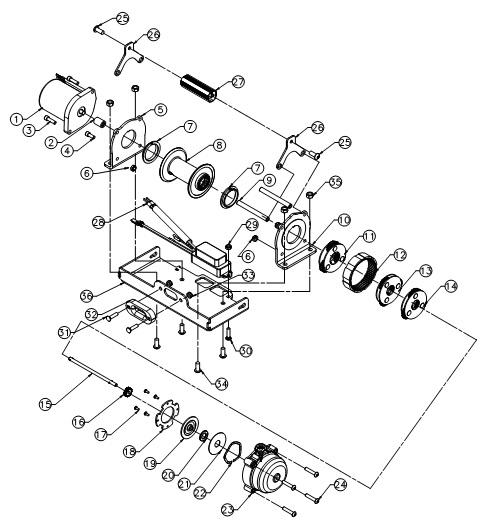

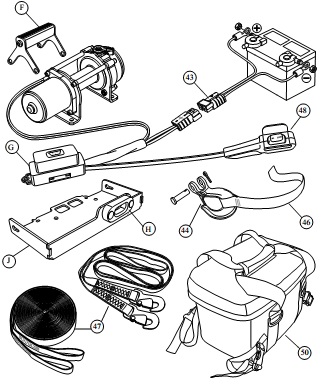

Для подбора запчасти для лебедки WARN SnoWinch 1.5 найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item No | Description | Part No |
| 1 | MOTOR, WINCH, GREY, SNOWINCH | 70178 |
| 2 | COUPLER, MOTOR, 1.5ci | A |
| 3 | CPSCR, SCKT, 1/4-20 X 7/8, ZN | B |
| 4 | CPSCR, SCKT, 1/4-20 X 5/8, ZN | B |
| 5 | DRUM SUPPORT, MOTOR SIDE, 1.5ci | C |
| 6 | NUT, NYLOCK, JAM, 1/4-20 | B |
| 7 | BUSHING, DRUM, 1.5ci (PAIR) | 69341 |
| 8 | DRUM, WINCH, 1.5ci, ALUM. | 69337 |
| 9 | TIE ROD, WINCH, 1.5ci (PAIR) | 69338 |
| 10 | DRUM SUPPORT, GEAR SIDE, 1.5ci | C |
| 11 | CARRIER ASSY, STAGE 3, 1.5ci | 69334 |
| 12 | GEAR, RING, 1.5ci | 69335 |
| 13 | CARRIER ASSY, STAGE 2, 1.5ci | 69331 |
| 14 | CARRIER ASSY, STAGE 1, 1.5ci | 69328 |
| 15 | DRIVE SHAFT ASSY, 1.5ci | A |
| 16 | GEAR, SUN, STAGE 1, 1.5ci | A |
| 17 | CPSCR, TAPTITE, 6 X 3/8" | D |
| 18 | PLATE, RETAINING, BRAKE, 1.5ci | D |
| 19 | DISK ASSEMBLY, ROLLER, 1.5ci | D |
| 20 | BEARING, ROLLER, THRUST, 1/2" | D |
| 21 | WASHER, THRUST, 1.5ci | D |
| 22 | SPRING, WAVE, 2" | D |
| 23 | HOUSING ASSY, WINCH, 1.5ci | 69326 |
| 24 | CPSCR, SCKT, 1/4-20 X 1-1/4, ZN | B |
| 25 | TORX, PAN, 1/4-20X3/4, TAPPING SCREW,TAPTITE | F |
| 26 | HANDLE, BRKT, SNOWINCH 1.5 (PAIR) | F |
| 27 | HANDLE,ALUM, SNOWINCH 1.5 | F |
| 28 | CONTACTOR, SNOWINCH 1.5 | G |
| 29 | NUT, NYLOCK, JAM, 1/4-20 | G |
| 30 | CARRIAGE BOLT, 1/4-20X5/8, ROUND HEAD | G |
| 31 | BOLT, SQ NK 1/4-20X1, BLK | H |
| 32 | FAIRLEAD, HAWSE | H |
| 33 | NUT, NYLOCK, JAM, 1/4-20 | H |
| 34 | CPSCR,BUTTON,SOC,HD,5/16-18X3/4,ZN | J |
| 35 | NUT, NYLOCK, JAM, 5/16-18 | J |
| 36 | MTG PLATE SNOWINCH 1.5 (Includes Liteature) | J |
| A | DRIVE SHAFT KIT, 1.5ci | 69343 |
| B | FASTENER KIT, WINCH, 1.5ci | 69342 |
| C | DRUM SUPPORTS, 1.5ci | 69339 |
| D | BRAKE SVC KIT, 1.5ci | 69327 |
| E | CLUTCH PIN KIT, 1.5ci | 69606 |
| F | HANDLE SNOWINCH | 70752 |
| G | CONTACTOR, SNOWINCH | 70755 |
| H | HAWSE KITSYNTHETIC SNOWINCH | 70759 |
| J | PLATE, MTG SNOWINCH | 70761 |
| 43 | LEAD, BATTERY, SNOWINCH | 70751 |
| 44 | HOOK KIT, 1/4", WINCH | 69329 |
| 45 | SHACKLES, 5/16" (PAIR) | 70753 |
| 46 | STRAP, HOOK, WARN | 69645 |
| 47 | STRAPS, NYLON 25', 9', SNOWINCH | 70757 |
| 48 | REMOTE, SWITCH, 10', SNOWINCH | 70756 |
| 49 | ROPE, SYNTHETIC, 5/32"X40' | 70758 |
| 50 | BAG SNOWINCH | 70760 |
