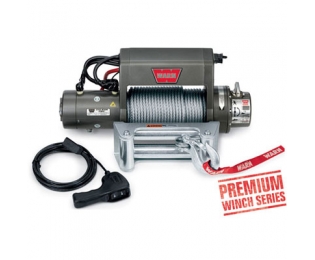

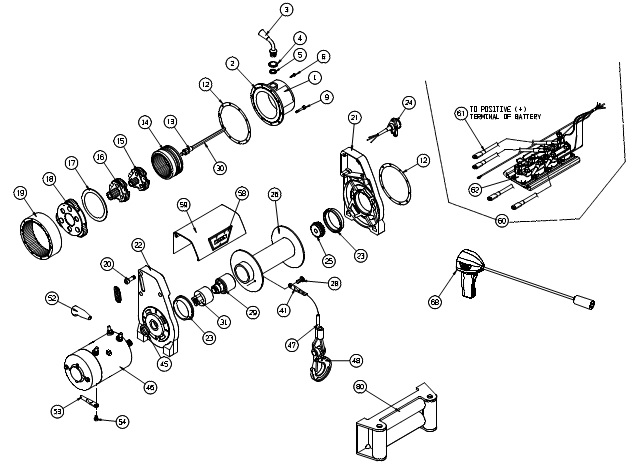

Для подбора запчасти для лебедки WARN XD9000i найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item | Qty | Part No | Description |
|
1
|
1 |
LABEL,KIT, CE, XD9000i
|
|
|
2
|
1 |
END HOUSING, ASSY (includes 3 & 14)
|
|
| 3 | 1 |
CLUTCH LEVER (Icludes #4, 5, 6, & 12)
|
|
| 4 | 1 |
RETAINER, SEAL
|
|
|
5
|
1 |
SEAL, O-RING
|
|
|
6
|
1 |
CLUTCH LEVER DETENT SCREW
|
|
| 9 | 10 |
SOCKET HEAD CAPSCREW, 10-24 x 2 1/2
|
|
| 12 | 2 |
GASKET
|
|
| 13 | 1 |
SUN GEAR
|
|
|
14
|
1 |
RING GEAR, SLIDING
|
|
|
15
|
1 |
CARRIER ASSEMBLY, STAGE 1
|
|
| 16 | 1 |
CARRIER ASSEMBLY, STAGE 2
|
|
| 17 | 1 |
THRUST BEARING
|
|
|
18
|
1 |
CARRIER ASSEMBLY, STAGE 3
|
|
|
19
|
1 |
RING GEAR
|
|
| 20 | 6 |
SOCKET HEAD CAPSCREW, 5/16 x 1.5
|
|
| 21 | 1 |
DRUM SUPPORT, GEAR TRAIN
|
|
| 22 | 1 |
DRUM SUPPORT, MOTOR
|
|
|
23
|
2 |
DRUM BUSHING
|
|
|
24
|
1 |
SOCKET ASSY
|
|
| 25 | 1 |
DRIVE SPLINED W/RETAINING RING
|
|
| 26 | 1 |
DRUM ASSEMBLY
|
|
| 28 | 1 |
BUTTON HEAD CAPSCREW
|
|
|
29
|
1 |
BRAKE ASSEMBLY (includes 25,30,&31)
|
|
|
30
|
1 |
HEX SHAFT, 10.1
|
|
| 31 | 1 |
MOTOR COUPLER
|
|
| 41 | 1 |
WIRE ROPE TERMINAL KIT
|
|
|
45
|
1 |
SPACER, MOTOR
|
|
|
46
|
1 |
S/P, MOTOR, 4.5 LONG
|
|
| 47 | 1 |
WIRE ROPE ASSEMBLY, 5/16" x 125', W/THIMBLE (Includes item 41)
|
|
| 48 | 1 |
CLEVIS HOOK, 3/8",W/LATCH
|
|
|
52
|
3 |
BOOT, ELECTRICAL TERMINAL
|
|
| 53 | 1 |
CABLE ASSY, ELEC, 2 GA x 72"(BLACK)
|
|
| 54 | 1 |
HEX HEAD CAPSCREW, M8 x 1.25 x 12MM
|
|
|
58
|
1 |
EMBLEM, WARN
|
|
|
59
|
1 |
HOUSING, SOLENOID
|
|
| 60 | 1 |
WINCH CONTROL, 12V
|
|
| 61 | 1 |
CABLE ASSY, ELEC, 2GA x 72" RED
|
|
| 62 | 4 |
SOLENOID, UPRIGHT TERMINAL
|
|
|
68
|
1 | 72567 | REMOTE CONTROL ASSY |
|
80
|
1 |
ROLLER, FAIRLEAD
|
