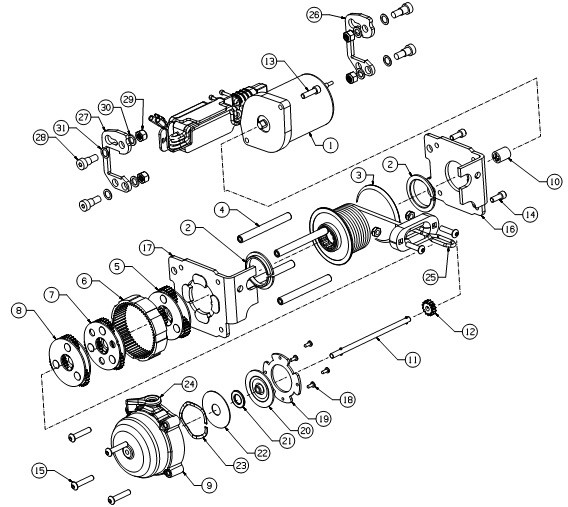

Для подбора запчасти для лебедки WARN портативная XT17 (Управление на лебедке) найдите нужную деталь на схеме (рисунке), затем по порядковому номеру найдите ее в таблице и нажмите на ссылку в колонке "№ по каталогу". При возникновении сложностей - наши менеджеры помогут подобрать нужную деталь, звоните!
| Item | Description | Part No |
| 1 | MOTOR-CONATCTOR ASSEMBLY | 89466 |
| 2 | DRUM BUSHINGS (Qty 2) | 69341 |
| 3 | WINCH DRUM | 69337 |
| 4 | TIE RODS (Qty 4) | 89209 |
| 5 | STAGE 3 CARRIER | 69535 |
| 6 | RING GEAR | 69335 |
| 7 | STAGE 2 CARRIER | 69534 |
| 8 | STAGE 1 CARRIER | 69328 |
| 9 | GEAR HOUSING | 69977 |
| DRIVE SHAFT KIT | 69343 | |
| 10 | MOTOR COUPLER (Qty 1) | |
| 11 | DRIVE SHAFT (Qty 1) | |
| 12 | STAGE 1 SUN GEAR (Qty) | |
| WINCH FASTENER KIT | 89307 | |
| 13 | CAPSCREW, SOCKET 1/4-20 X 7/8 (Qty 2) | |
| 14 | CAPSCREW, SOCKET 1/4-20 X 5/8 (Qty 2) | |
| 15 | CAPSCREW, SOCKET 1/4-20 X 1 1/4 (Qty 4) | |
| DRUM SUPPORT KIT | 88467 | |
| 16 | MOTOR SIDE DRUM SUPPORT | |
| 17 | GEAR SIDE DRUM SUPPORT | |
| BRAKE KIT | 69327 | |
| 18 | TAPTITE CAP SCREW, 6 X 3/8” (Qty 4) | |
| 19 | BRAKE RETAINING PLATE | |
| 20 | BRAKE DICS ASSEMBLY | |
| 21 | BEARING | |
| 22 | THRUST WASHER | |
| 23 | SPRING | |
| 24 | CLUTCH PIN KIT | 69606 |
| 25 | SYNTHETIC ROPE KIT | 72495 |
| PULL PLATE KIT | 89475 | |
| 26 | MOTOR SIDE PLATE (Qty 1) | |
| 27 | GEAR SIDE PLATE (Qty 1) | |
| 28 | SHOULDER BOLT (Qty 4) | |
| 29 | NUT (Qty 2) | |
| 30 | WASHERS (Qty4) | |
| 31 | WASHERS, 5/16 (Qty2) | |
| FAIRLEAD KIT | 89469 | |
| 32 | HAWSE FAIRLEAD (Qty 2) | |
| 33 | CAPSCREW, SOCKET 1/4-20 X 1 (Qty 2) | |
| 34 | NUT, 1/4-20 (Qty 2) | |
| 35 | WINCH HOOK KIT | 69329 |
| 36 | WARN HOOK STRAP | 69645 |

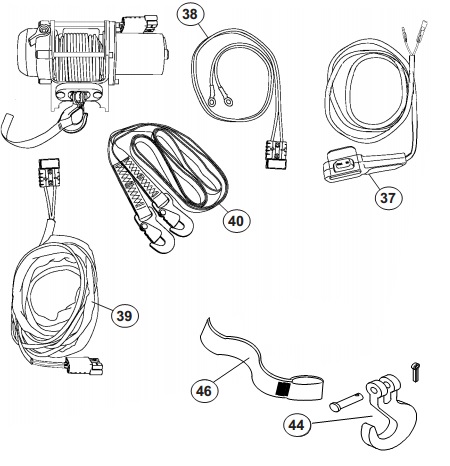

| 37 | REMOTE KIT | 89470 |
| 38 | BATTERY LEAD | 89474 |
| 39 | EXT LEAD | 89472 |
| 40 | STRAP | 89476 |
